HCR Applications in Aerospace

High-Consistency Rubber in Aviation and Space

The aerospace industry represents one of the most demanding environments for elastomeric materials. Extreme temperatures, aggressive chemicals, high altitudes, and zero-failure tolerance requirements push materials to their absolute limits. High-Consistency Rubber (HCR) silicone elastomers have proven essential in meeting these challenges, offering unique combinations of thermal stability, chemical resistance, and mechanical reliability that aerospace engineers depend on.

From commercial airliners flying at 35,000 feet to spacecraft experiencing the vacuum of space, HCR silicone components perform critical functions in sealing, insulation, vibration management, and environmental protection. This guide explores the applications, specifications, and performance characteristics of HCR silicone in aerospace environments.

Understanding HCR Silicone in Aerospace Context

What is High-Consistency Rubber (HCR)?

HCR silicone, also known as solid silicone rubber or high-temperature vulcanizing (HTV) silicone, is a two-component material consisting of:

• Base polymer: Long-chain silicone molecules (polydimethylsiloxane)
• Reinforcing fillers: Fumed silica for strength and elasticity
• Crosslinking agents: Peroxides or platinum catalysts for curing
• Additives: Heat stabilizers, pigments, and functional fillers

Key Characteristics:

• High molecular weight (500,000-1,000,000 g/mol)
• Putty-like consistency before curing
• Requires heat and pressure for vulcanization
• Post-cure processing for optimal properties

Why HCR for Aerospace?

Property	HCR Performance	Aerospace Benefit
Temperature range	-65°C to 260°C (standard), -80°C to 300°C (special)	Extreme environment operation
UV resistance	Excellent	Space radiation survival
Ozone resistance	Outstanding	High-altitude durability
Compression set	<15% at 175°C	Long-term sealing integrity
Flame resistance	UL94 V-0 available	Fire safety compliance
Outgassing	Low volatile content	Space vacuum compatibility

Critical Aerospace Applications

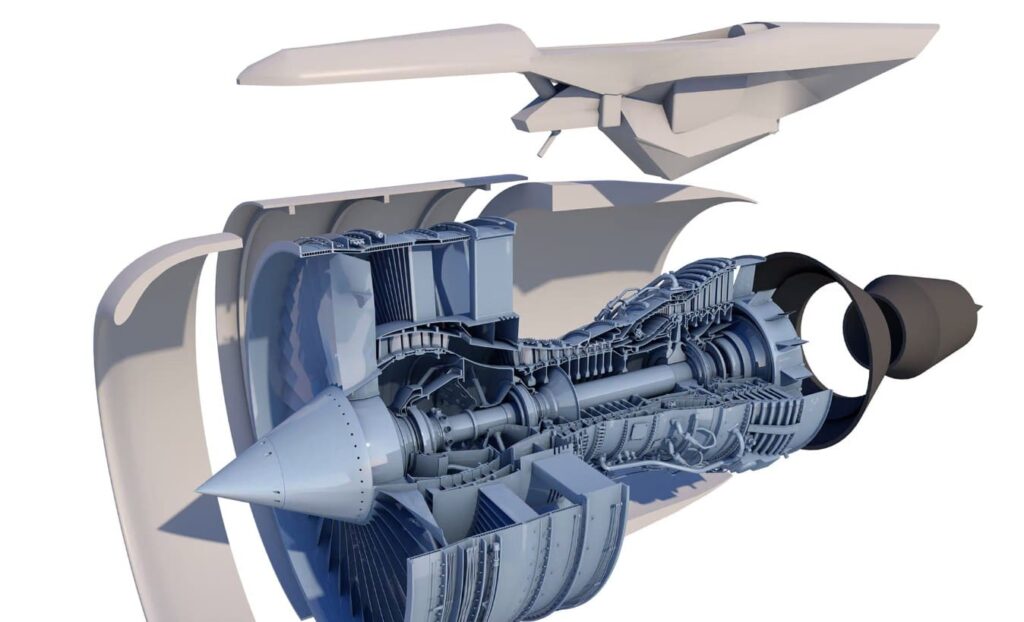

1. Engine Seals and Gaskets

Operating Environment:

• Temperature: -40°C to 250°C
• Pressure: Up to 500 psi
• Media: Jet fuel, hydraulic fluid, lubricating oils
• Vibration: High-frequency engine vibration

HCR Applications:

Turbine Seals:

• Blade tip seals
• Interstage seals
• Bearing compartment seals
• Accessory drive seals

Material Requirements:

• High-temperature stability (250°C continuous)
• Jet fuel resistance (JP-4, JP-5, JP-8)
• Low compression set
• High tear strength

Performance Specifications:

• AMS-R-83485 (fluorosilicone)
• AMS 3304 (high-temperature)
• SAE AMS 3216 (fuel-resistant)

2. Environmental Control Systems

System Functions:

• Cabin pressurization
• Temperature regulation
• Humidity control
• Air quality management

HCR Components:

Duct Seals:

• Flexible connections between duct sections
• Vibration isolation
• Thermal expansion accommodation
• Pressure sealing

Valve Seals:

• Butterfly valve seals
• Check valve seats
• Control valve packings
• Pressure relief valve seals

Material Specifications:

• AMS 3301 (general purpose)
• AMS 3302 (low-temperature)
• AMS 3303 (high-temperature)

3. Fuel System Sealing

Challenges:

• Aggressive fuel chemistry
• Wide temperature range
• Fire safety requirements
• Long service life (30+ years)

HCR Solutions:

Fluorosilicone HCR (FVMQ):

• Superior fuel resistance
• Temperature range: -60°C to 225°C
• Compatible with aromatics in jet fuel
• Meets AMS-R-83485 specification

Applications:

• Fuel tank access panel seals
• Fuel pump seals
• Fuel line couplings
• Fuel control system seals
• Floating seals for fuel tanks

4. Electrical Connectors and Cable Harnesses

Requirements:

• Electrical insulation
• Environmental sealing
• EMI/RFI shielding (when conductive)
• Fire resistance
• Long-term reliability

HCR Applications:

Connector Seals:

• Multi-cavity connector grommets
• Individual wire seals
• Interface seals
• Environmental resistant connectors

Cable Management:

• Cable grommets
• Firewall feedthroughs
• Strain relief boots
• Cable tie cushions

Conductive HCR:

• EMI shielding gaskets
• Grounding pads
• Static dissipation
• Lightning protection

Specifications:

• MIL-DTL-25988 (connector seals)
• SAE AS 85049 (connector accessories)
• AMS 3357 (conductive silicone)

5. Vibration Isolation and Damping

Aerospace Vibration Sources:

• Engine operation
• Aerodynamic forces
• Landing gear impact
• Control surface movement

HCR Solutions:

Vibration Isolators:

• Engine mount bushings
• Equipment isolation mounts
• Avionics rack isolators
• Panel damping pads

Material Properties:

• Tunable durometer (30-80 Shore A)
• High damping coefficient
• Fatigue resistance
• Temperature-stable properties

6. Space Applications

Space Environment Challenges:

• Vacuum (10^-6 to 10^-12 Torr)
• Extreme temperature cycling (-150°C to +120°C in orbit)
• Atomic oxygen (LEO)
• Radiation (UV, gamma, particle)
• Outgassing constraints

HCR for Space:

Low Outgassing Formulations:

• Total Mass Loss (TML) <1.0%
• Collected Volatile Condensable Material (CVCM) <0.10%
• Meets NASA outgassing requirements
• Post-cure processing essential

Applications:

• Spacecraft sealing systems
• Solar array deployment mechanisms
• Antenna gimbal seals
• Docking system seals
• Thermal control system seals

Material Specifications and Standards

AMS (Aerospace Material Specifications)

Common HCR Specifications:

Specification	Type	Key Properties	Applications
AMS 3301	General purpose	-54°C to 204°C	General sealing
AMS 3302	Low temperature	-65°C to 204°C	Cold climate
AMS 3303	High temperature	-54°C to 260°C	Engine applications
AMS 3304	Ultra high temp	-54°C to 300°C	Extreme environments
AMS 3305	Low compression set	<10% at 175°C	Critical seals
AMS-R-83485	Fluorosilicone	Fuel resistant	Fuel systems
AMS 3357	Conductive	EMI shielding	Electronics

SAE Standards

AS (Aerospace Standards):

• AS 568: O-ring sizes
• AS 85049: Connector accessories
• AS 4373: Insulation tubing

ARP (Aerospace Recommended Practices):

• ARP 5316: Storage of elastomer seals
• ARP 1234: Elastomer shelf life

Military Specifications

MIL-DTL Standards:

• MIL-DTL-25988: Silicone rubber, electric grade
• MIL-PRF-6855: Rubber, synthetic, general purpose
• MIL-PRF-83461: O-rings, fluorosilicone

Testing Requirements

Physical Properties:

• Tensile strength (ASTM D412)
• Elongation (ASTM D412)
• Hardness (ASTM D2240)
• Compression set (ASTM D395)
• Tear strength (ASTM D624)

Environmental Resistance:

• Heat aging (AMS 3216)
• Fluid resistance (AMS 3216)
• Low-temperature flexibility (ASTM D2137)
• Ozone resistance (ASTM D1171)

Aerospace-Specific:

• Outgassing (ASTM E595)
• Flammability (14 CFR 25.853)
• Smoke density (ASTM F814)
• Toxicity (BSS 7239)

Manufacturing Processes for Aerospace HCR

Compression Molding

Process Description:

• Preform placed in heated mold cavity
• Mold closes under pressure (500-3000 psi)
• Heat (150-200°C) activates cure
• Part removed, post-cured if required

Aerospace Applications:

• Large seals and gaskets
• Complex geometry parts
• Low to medium volume production

Advantages:

• Lower tooling cost
• Good for large parts
• Material versatility

Challenges:

• Longer cycle times
• Flash removal required
• Dimensional tolerance limits

Transfer Molding

Process Description:

• Material preheated in transfer pot
• Forced into closed mold cavity
• Cures under heat and pressure
• Automatic flash removal possible

Aerospace Applications:

• Precision seals
• Multi-cavity production
• Medium volume requirements

Advantages:

• Better part consistency
• Shorter cycle times than compression
• Good for complex inserts

Injection Molding

Process Description:

• Material plasticized in barrel
• Injected into heated mold
• High pressure (10,000-20,000 psi)
• Fast cure cycles

Aerospace Applications:

• High-volume production
• Precision components
• Complex geometries

Advantages:

• Fastest cycle times
• Excellent dimensional control
• Minimal flash
• High automation potential

Challenges:

• Higher tooling costs
• Material must have injection viscosity
• Shrinkage control critical

Extrusion

Process Description:

• Material forced through die
• Continuous profile production
• Hot air or salt bath curing
• Cut to length or coiled

Aerospace Applications:

• Tubing and hose
• Profile seals
• Cord stock
• Sheet products

Advantages:

• Continuous production
• Consistent cross-section
• Cost-effective for long lengths

Quality Assurance for Aerospace

IATF 16949 and AS9100

Quality Management Systems:

• AS9100: Aerospace-specific QMS
• IATF 16949: Automotive (often dual-certified)
• ISO 9001: Foundation standard

Key Requirements:

• Documented procedures
• Traceability
• Statistical process control
• Corrective action systems
• Continuous improvement

First Article Inspection (FAI)

AS9102 Requirements:

• Dimensional verification
• Material certification
• Special process validation
• Test report review
• Configuration verification

Production Part Approval Process (PPAP)

Aerospace PPAP Levels:

• Level 3: Standard submission
• Dimensional results
• Material test results
• Performance test results
• Process flow diagram
• Control plan

Traceability

Lot Control:

• Raw material lot tracking
• Manufacturing batch records
• Cure date tracking
• Shelf life monitoring

Serialization:

• Individual part marking
• Laser etching
• Ink marking (where allowed)
• RFID tags (emerging)

Design Guidelines for Aerospace HCR

Groove Design for Seals

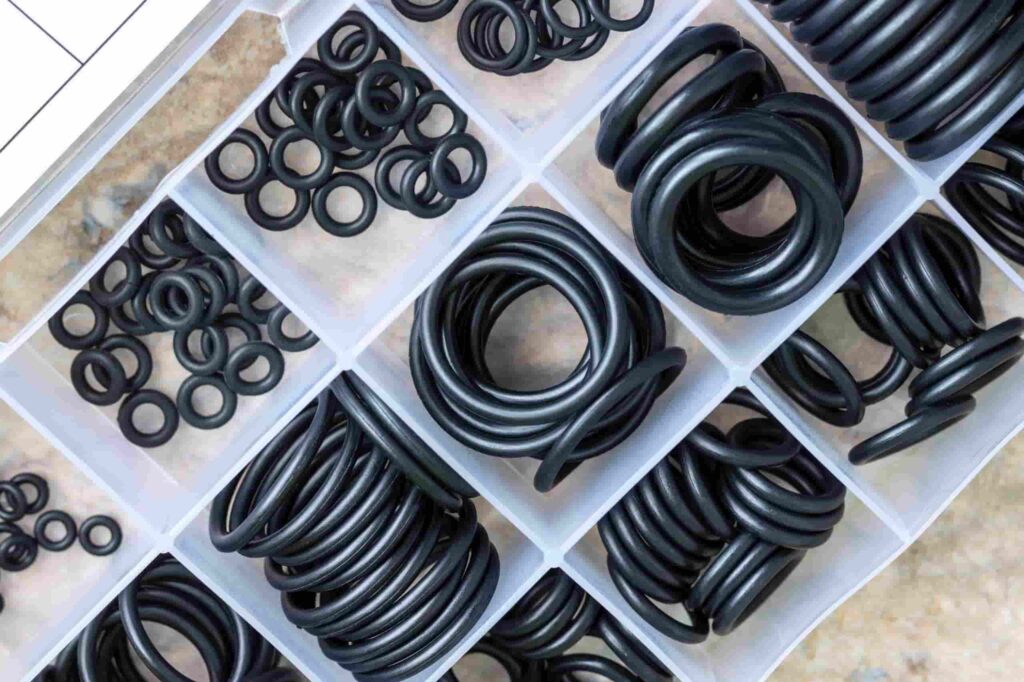

O-Ring Groove Dimensions:

• Follow AS 568 standard sizes
• Groove width: 1.05-1.10 × O-ring cross-section
• Groove depth: 0.70-0.85 × O-ring cross-section
• Surface finish: 32-63 µin Ra

Rectangular Seal Grooves:

• 15-20% compression for static seals
• 10-15% compression for dynamic seals
• Lead-in chamfers required
• Avoid sharp corners

Tolerance Considerations

Standard Tolerances:

• Compression molded: ±0.005″ or ±0.13mm
• Transfer molded: ±0.003″ or ±0.08mm
• Injection molded: ±0.002″ or ±0.05mm

Critical Dimensions:

• Seal surfaces: Tighter tolerances
• Mounting features: Standard tolerances
• Non-critical areas: Looser tolerances

Surface Finish Requirements

Sealing Surfaces:

• 16-32 µin Ra (0.4-0.8 µm)
• No scratches or defects
• Proper lay direction

Non-Sealing Surfaces:

• 63-125 µin Ra (1.6-3.2 µm)
• Tool marks acceptable
• Flash must be removed

Storage and Shelf Life

Proper Storage Conditions

Temperature:

• 15-25°C (59-77°F) preferred
• Avoid >35°C (95°F)
• Freeze storage possible for extended shelf life

Humidity:

• <75% relative humidity
• Desiccant packaging recommended
• Avoid condensation

Light:

• Protection from UV/sunlight
• Opaque packaging
• Dark storage areas

Other Factors:

• Away from ozone sources
• Away from solvents and fuels
• No heavy stacking
• First-in-first-out rotation

Shelf Life Guidelines

Uncured HCR:

• Standard storage: 12 months
• Refrigerated storage: 24 months
• Frozen storage: 36+ months

Cured HCR Parts:

• Standard formulations: 10-20 years
• Fluorosilicone: 15-25 years
• Special formulations: 25+ years

Shelf Life Extension:

• Testing required for extension
• Visual inspection
• Physical property verification
• Documentation review

Future Trends in Aerospace HCR

Advanced Formulations

Extreme Temperature:

• -100°C to 350°C capability
• Space exploration applications
• Hypersonic vehicles

Chemical Resistance:

• Alternative fuel compatibility
• Biofuel resistance
• Advanced hydraulic fluids

Functional Fillers:

• Carbon nanotube reinforcement
• Graphene-enhanced properties
• Self-healing formulations

Manufacturing Innovations

3D Printing:

• Silicone additive manufacturing
• Complex geometries
• Rapid prototyping
• Low-volume production

Smart Materials:

• Shape-memory silicones
• Self-sensing seals
• Condition monitoring
• Predictive maintenance

Sustainability

Bio-based Silicones:

• Renewable raw materials
• Reduced carbon footprint
• Life cycle benefits
• Recycling initiatives

Lightweighting:

• Lower density formulations
• Thin-wall designs
• Structural optimization
• Fuel efficiency contribution

Conclusion: HCR’s Critical Aerospace Role

Aerospace applications demand materials that can perform reliably under some of the harshest operating conditions possible, from extreme temperatures and aggressive chemicals to vibration, pressure changes, and strict safety requirements. That is exactly why High Consistency Rubber Vietnam continues to be such an important topic for manufacturers looking for durable, high-performance silicone solutions. In critical aerospace components such as seals, gaskets, insulation systems, and vibration-control parts, HCR delivers the consistency, thermal stability, and long-term mechanical reliability needed to support both current aviation platforms and the next generation of aerospace innovation.

At Goflexion, we see the value of this blog context as more than technical education. It reflects the real-world engineering challenges our customers face when selecting materials for demanding applications. By combining material expertise, manufacturing knowledge, and a practical understanding of performance requirements, Goflexion helps turn complex aerospace needs into dependable silicone solutions. This is where our experience in High Consistency Rubber Vietnam becomes especially relevant, supporting companies that need quality, precision, and confidence in every component they produce.

*For technical consultation on aerospace HCR applications and material selection, contact Flexion (GoFlexion) engineering team.*

Frequently Asked Questions (FAQ)

1. What is HCR silicone and why is it used in aerospace?

High-Consistency Rubber (HCR) silicone is a solid, high-molecular-weight elastomer that offers exceptional thermal stability, chemical resistance, and mechanical durability. It is widely used in aerospace because it can withstand extreme environments such as high altitudes, engine heat, and even space vacuum conditions while maintaining reliable performance.

2. What temperature range can HCR silicone handle in aerospace applications?

HCR silicone typically operates between -65°C and 260°C, with specialized formulations reaching up to 300°C or lower than -80°C. This makes it suitable for applications ranging from engine systems to high-altitude and space environments.

3. Why is fluorosilicone (FVMQ) important in aerospace fuel systems?

Fluorosilicone is essential because it offers superior resistance to jet fuels, oils, and aggressive chemicals. It maintains sealing performance even when exposed to aromatic fuels, making it ideal for fuel tanks, fuel lines, and fuel system components.

4. What are the main aerospace applications of HCR silicone?

HCR silicone is used across multiple critical systems, including:

• Engine seals and gaskets
• Environmental control systems (air ducts and valves)
• Fuel system sealing
• Electrical connectors and cable harnesses
• Vibration isolation components
• Spacecraft sealing systems

These applications require long-term reliability with zero-failure tolerance.

5. How does HCR silicone perform in space environments?

HCR silicone is well-suited for space due to its low outgassing properties, resistance to radiation, and ability to withstand extreme temperature cycling. It meets strict aerospace standards such as NASA outgassing requirements, ensuring performance in vacuum conditions.

6. What standards and certifications apply to aerospace HCR materials?

Common aerospace standards include:

• AMS (Aerospace Material Specifications) such as AMS 3301–3305
• SAE standards (e.g., AS568 for O-rings)
• MIL specifications (e.g., MIL-DTL-25988)
• Testing standards such as ASTM and aerospace-specific flammability and outgassing requirements

These ensure materials meet strict safety and performance criteria.

7. What manufacturing processes are used for HCR silicone parts?

Key processes include:

• Compression molding for large or complex parts
• Transfer molding for medium-complexity components
• Injection molding for high-precision parts
• Extrusion for continuous profiles like tubing and seals

The choice depends on part geometry, tolerance requirements, and production volume.

8. How long do aerospace HCR silicone components last?

HCR silicone components can last 10–25+ years depending on formulation and application. In many aerospace systems, they are designed to match or exceed the service life of the aircraft or spacecraft component.

9. What makes HCR silicone suitable for vibration isolation?

HCR silicone offers excellent damping properties, fatigue resistance, and stable mechanical performance across temperature ranges. This makes it ideal for isolating vibration from engines, avionics, and structural components, improving system reliability and longevity.

10. How do engineers select the right HCR material for aerospace use?

Material selection depends on:

• Temperature exposure
• Chemical environment (fuel, hydraulic fluids, etc.)
• Mechanical stress and vibration
• Electrical requirements (insulation or conductivity)
• Regulatory and certification standards

Working with an experienced supplier like Flexion (GoFlexion) ensures the right formulation, compliance, and performance for mission-critical aerospace applications.
